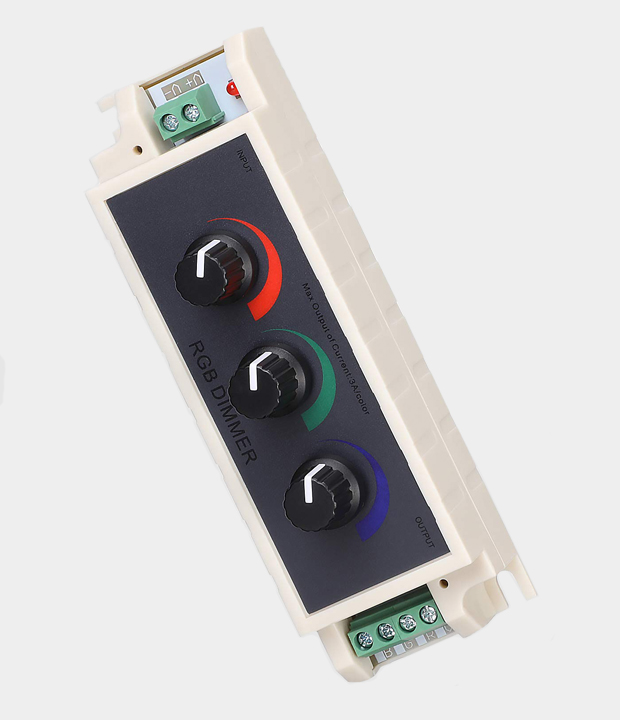

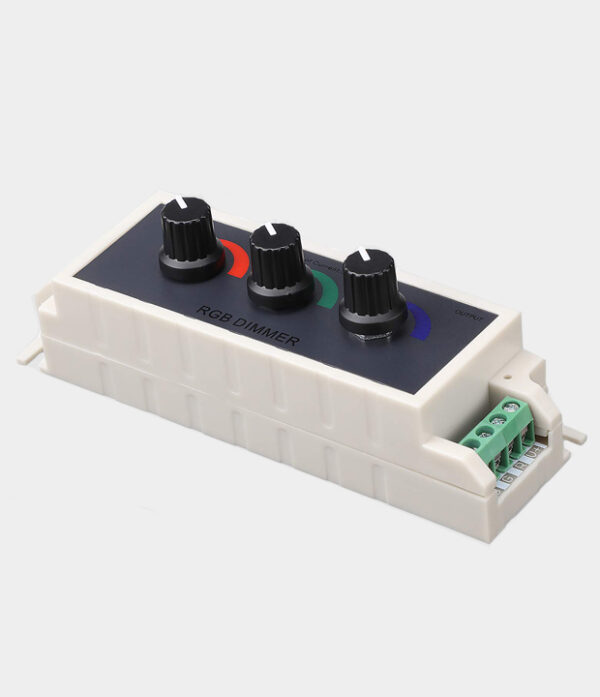

3 Zones RGB Controller

$32.00

3 Zones RGB Controller is a simple controller that lets you control up to 3 independent channels with 0-100% power rotary knobs. Thanks to its simplicity you can fine tune the any desired color in a color changing LED strip by incrementing or decreasing the RED, BLUE or Green Colors.

Uses

– For RGB Led Strip controlling and dimming each color independently
– For solid color LED Strips with 3 independent channels
– For Dynamic White LED strip, controlling color temperature.

SKU: 9500-ACC250-MOS101 Category:

Description

3 Zones RGB Controller

3 Zones RGB Controller is a simple controller that lets you control up to 3 independent channels with 0-100% power rotary knobs. Thanks to its simplicity you can fine tune the any desired color in a color changing LED strip by incrementing or decreasing the RED, BLUE or Green Colors.

Uses

– For RGB Led Strip controlling and dimming each color independently
– For solid color LED Strips with 3 independent channels
– For Dynamic White LED strip, controlling color temperature.

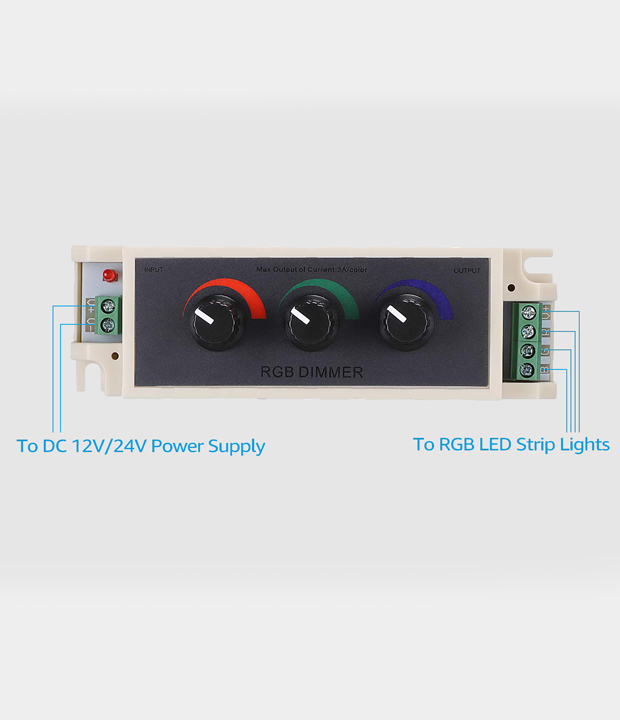

Installation is quite easy, just power up the unit in with 12 to 24V DC power source and connect the 3 outputs to and RGB LED strip or a Solid Color LED strip. Power and outputs cables are easily connected to the unit through screw down connectors, which make 100% secure connections. Perfect to use in LUMIRON’s Dakota LED Panel

Technical Specs:

– 12v DC or 24V DC Operation
– Up to 108W control for 12V DC or 216W for 24V DC Operation
– 3 Independently controlled Knobs for red, Green and Blue

Additional information

Weight 0.25 lbs

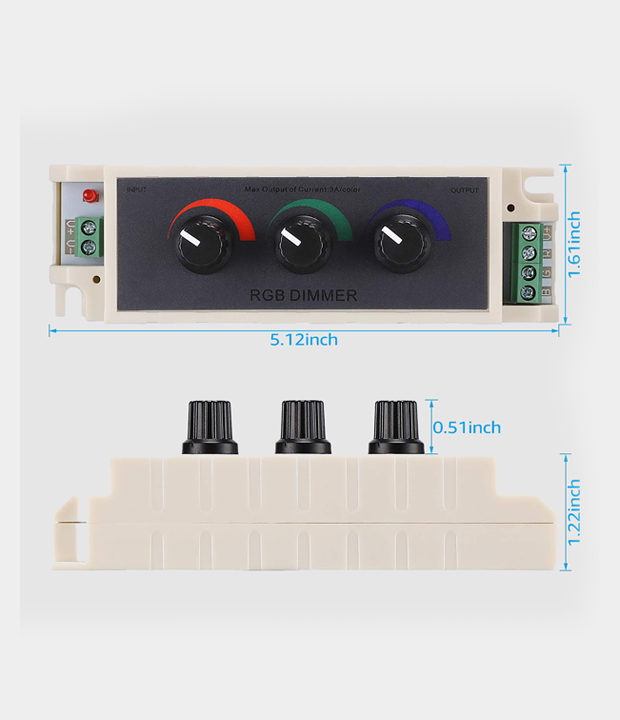

Dimensions 5.12 × 2.62 × 2 in
Dimensions

5.12" x 1.61" x 1.73"

Input Voltage

12 VDC, 24 VDC

Output Channel

3 Channels
