Dakota Led Panel












Dakota Led Panel

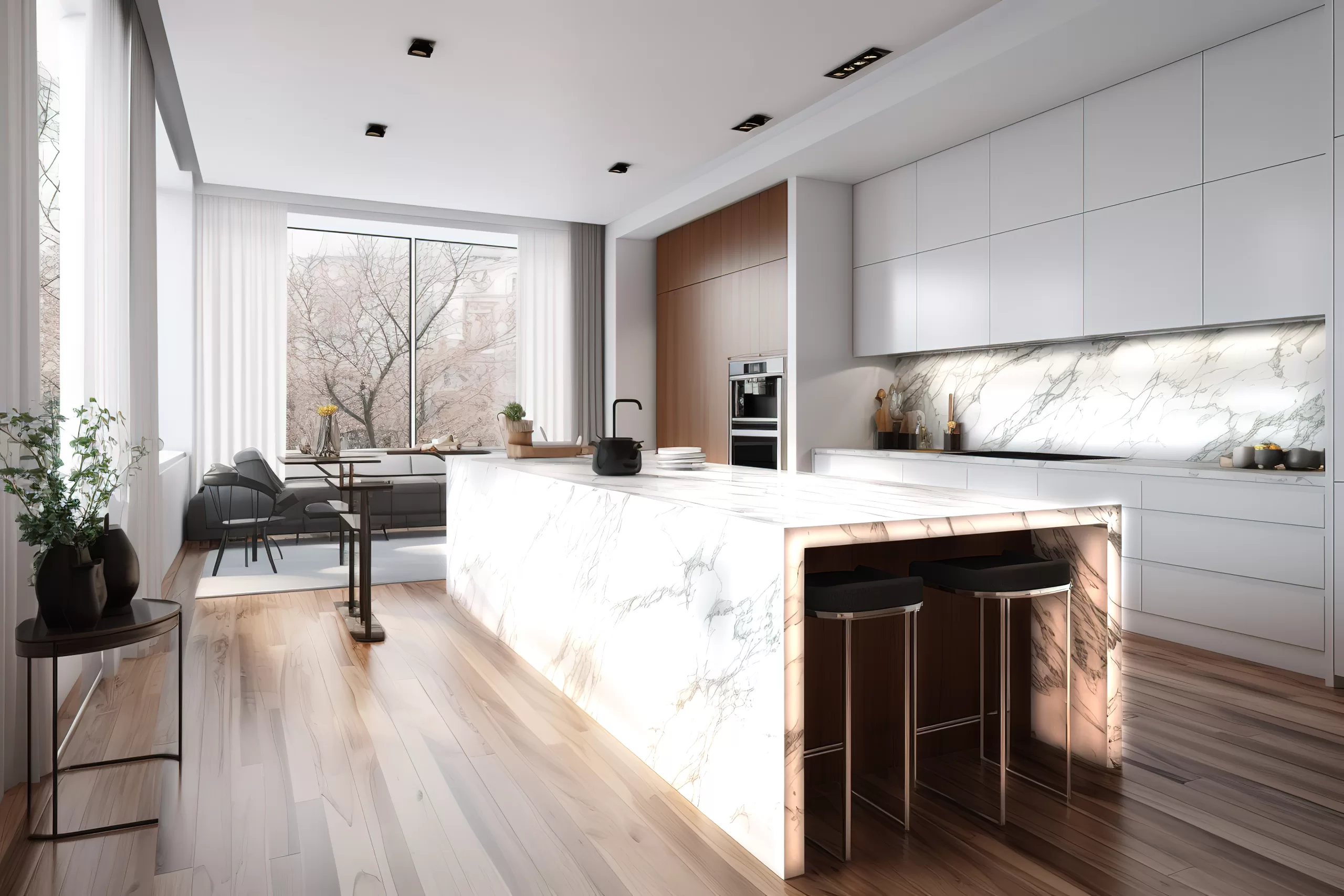

The Custom LED Light Panel is the new innovative light source. In other words, it is designed to be ultimately slim, have even illumination, and be customizable to your design. This new DAKOTA innovative technology and design can be applied in all types of markets to backlit led panels for onyx, quartz, translucent stone. For instance, Architecture & Design, Onyx Translucent Stones, Retail, Signage, and Display & Fixture are some of the main ones.
The LED Light Panel DAKOTA is perfect for stone applications. In addition, their ultra-thin design, from ¼” – ¾” thickness makes them accessible in all areas. Besides, they are available in 24VDC systems with a power supply included. Finally, they also come with DC connectors and adaptors and they are available in a variety of color temperatures: 3000 K, 4500 K, 6500 K, RGB, RGBW, CCT 3000K-6000K and custom colors.
payment
Credit Card: We support several card brands, from large global networks like Visa and Mastercard
- Visa
- Mastercard
- American Express
- Wire Transfer
- Checks




LED Light Panel
CUSTOMIZABLE
Our LED panel lights are a turn-key solution, manufactured to your specs to achieve your desired lighting aesthetic.
DIMMABLE
Our LED panels are fabricated using only our trusted and verified LED lighting components.
LOW POWER CONSUMPTION
All our products are designed to have a minimum energy consumption
MADE IN USA
Product 100% built in the USA, with all quality standards

Know More About The Process
LED Light Panel
Custom Orders
The customers brings to us their ideas, the project is designed according to the clients needs.
Development
Products are manufactured at our facilities in Miami, Florida by highly qualified personnel.
Standards & Regulations
The products manufactured by Lumiron, Inc are ETL Listed or UR Certified.
Shipping & Handling
Finished products are picked up by customers in our facilities or shipped out via UPS or FEDEX.

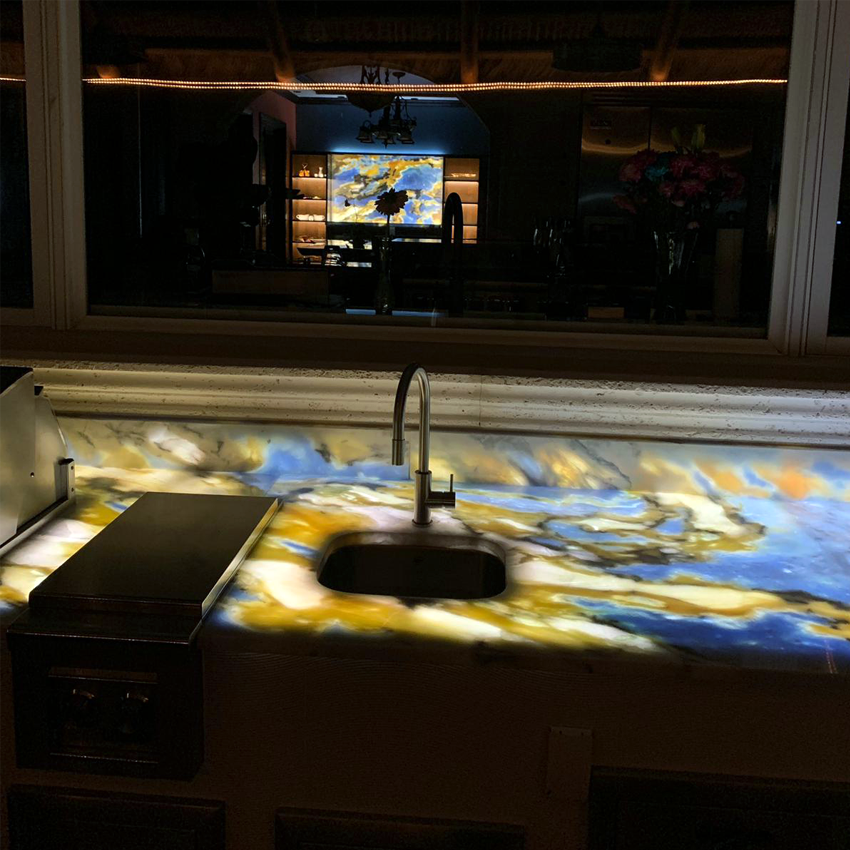

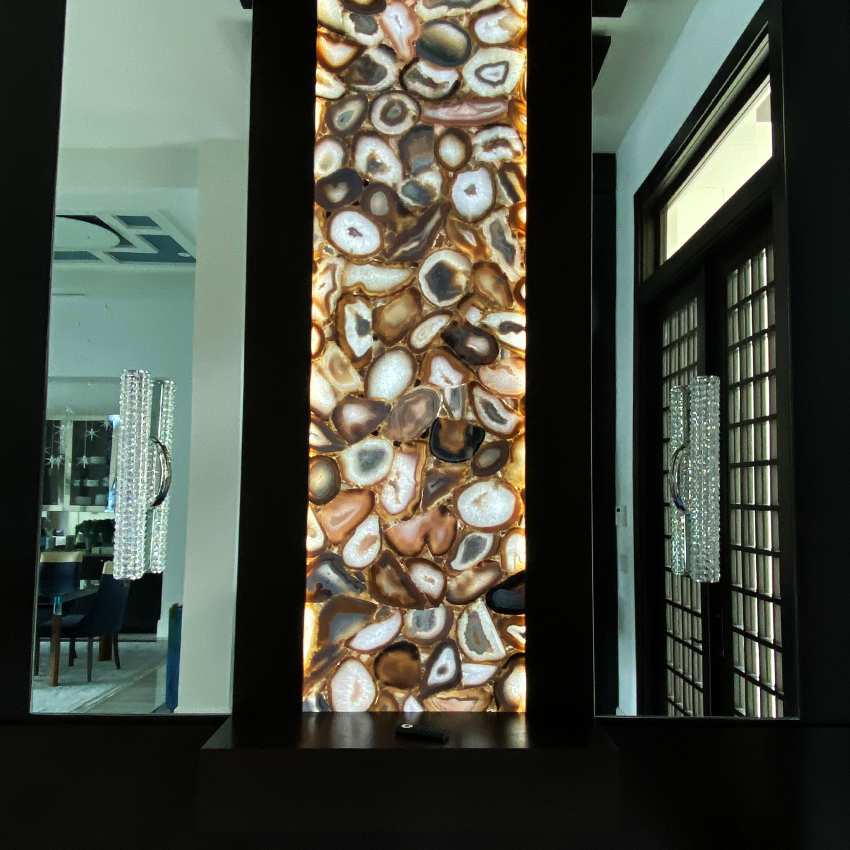

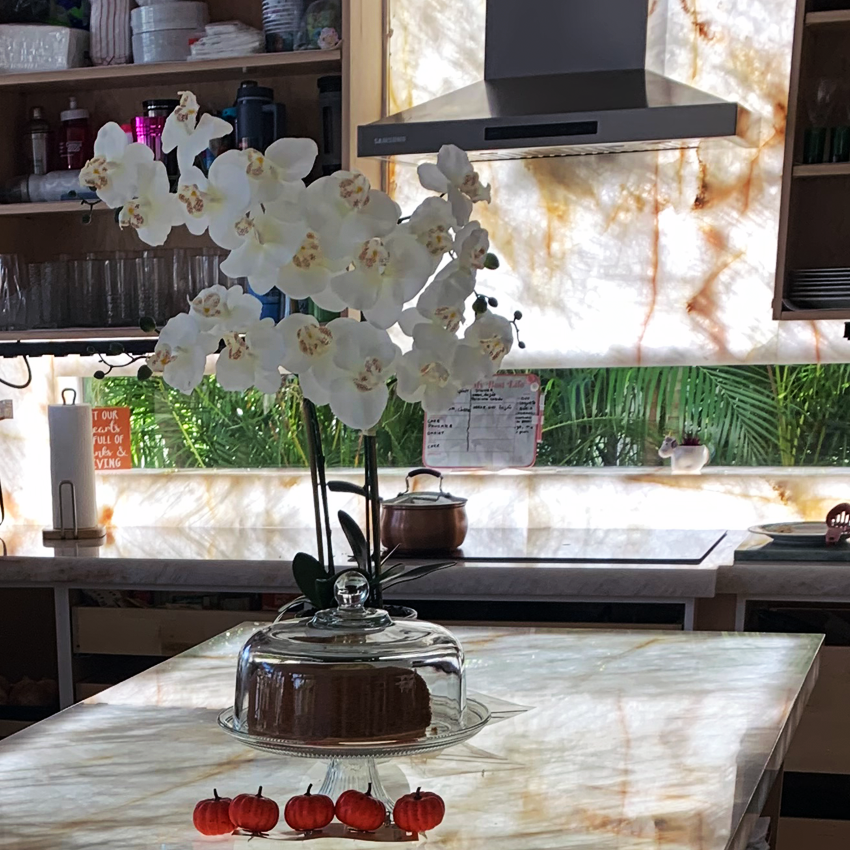

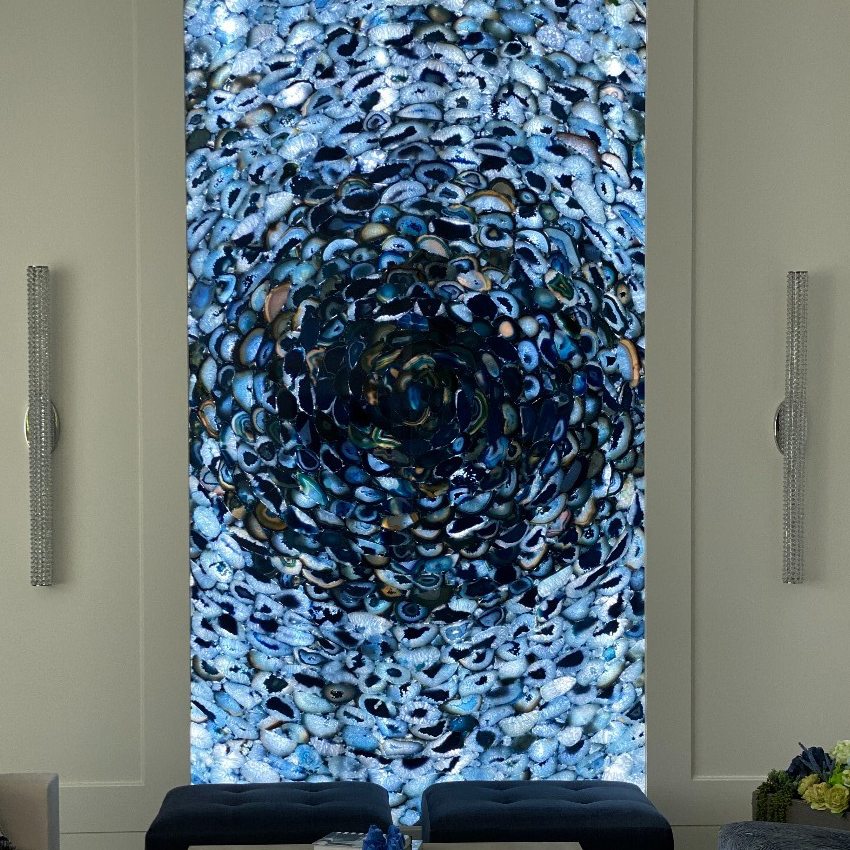

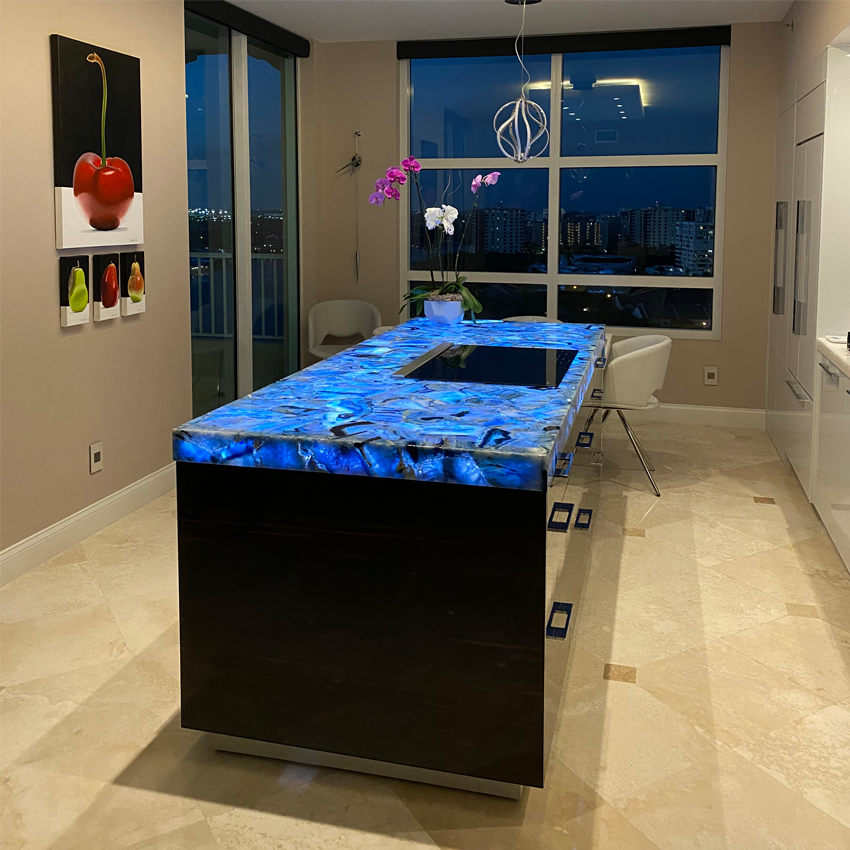

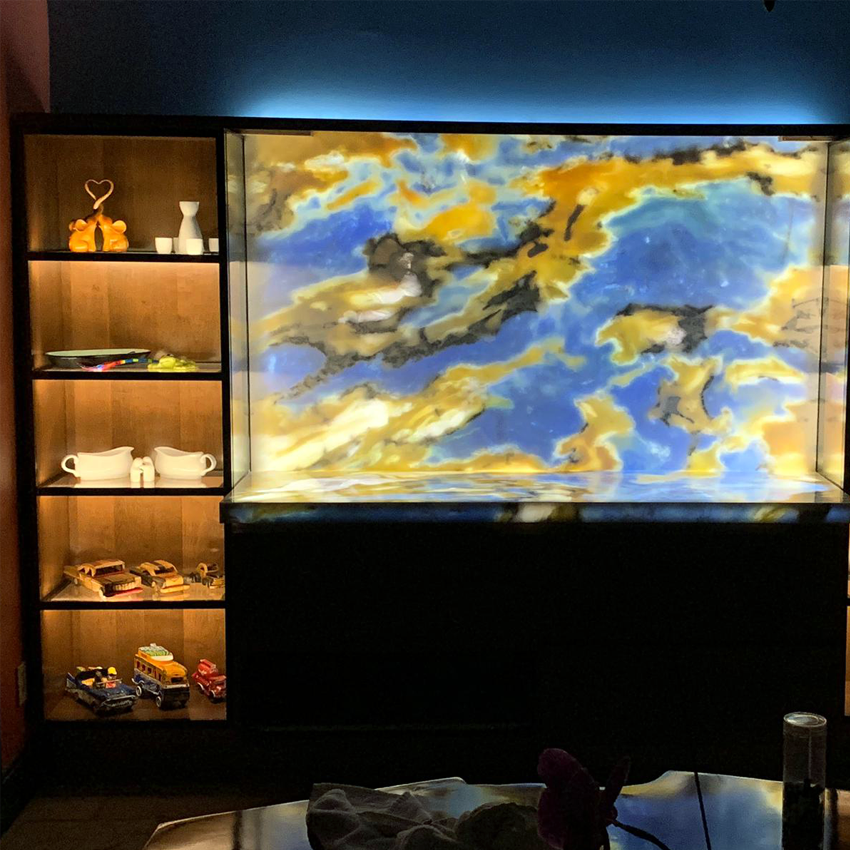

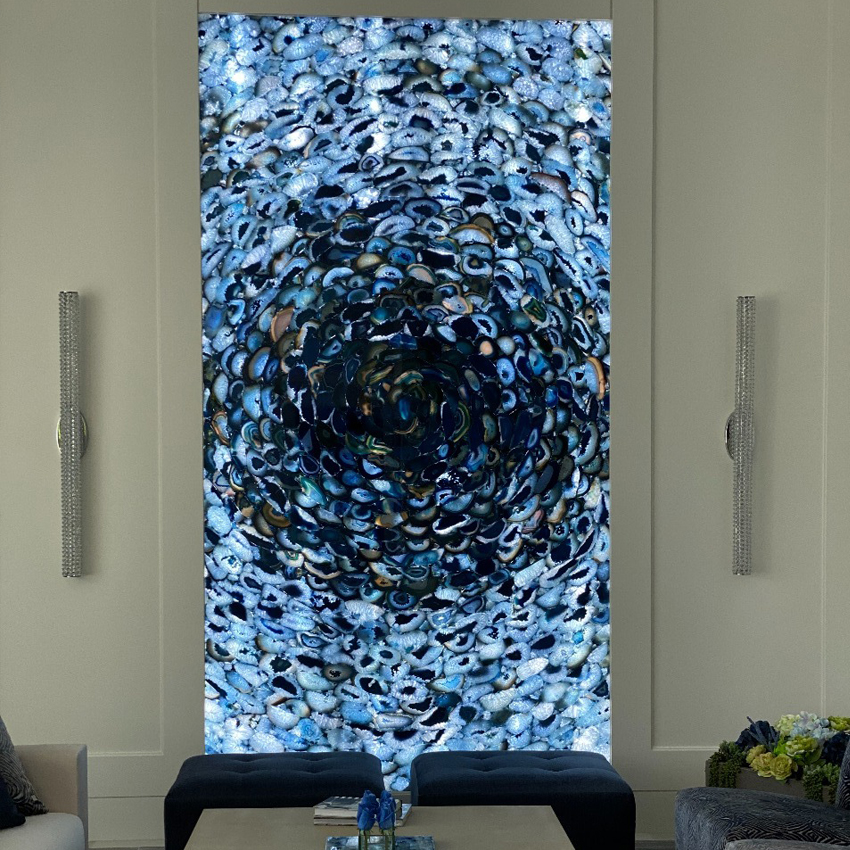

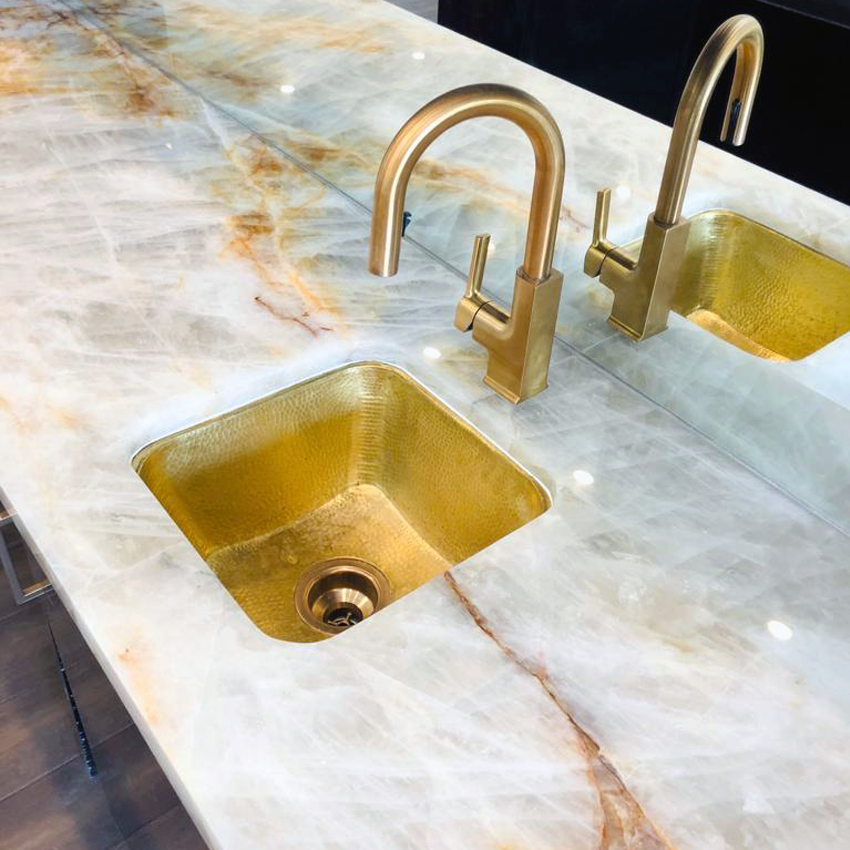

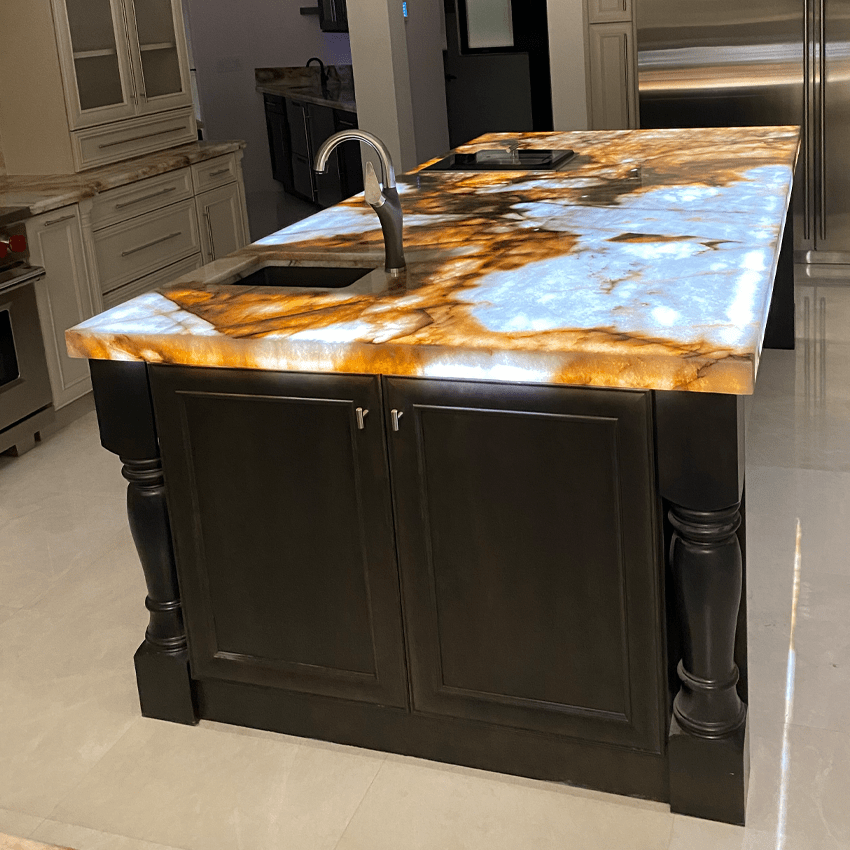

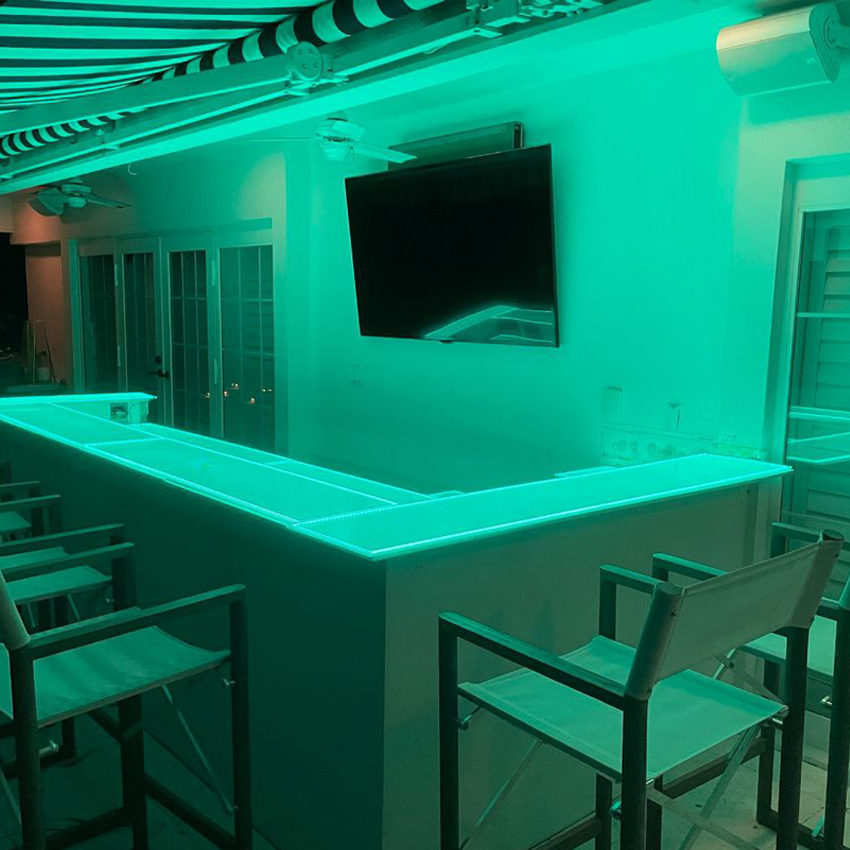

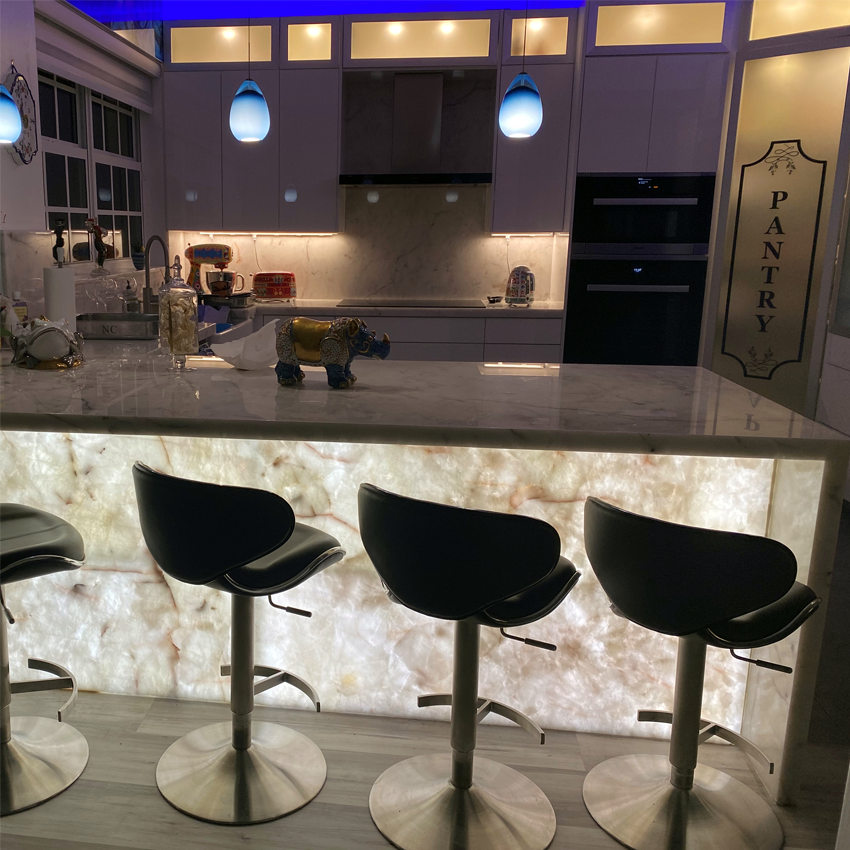

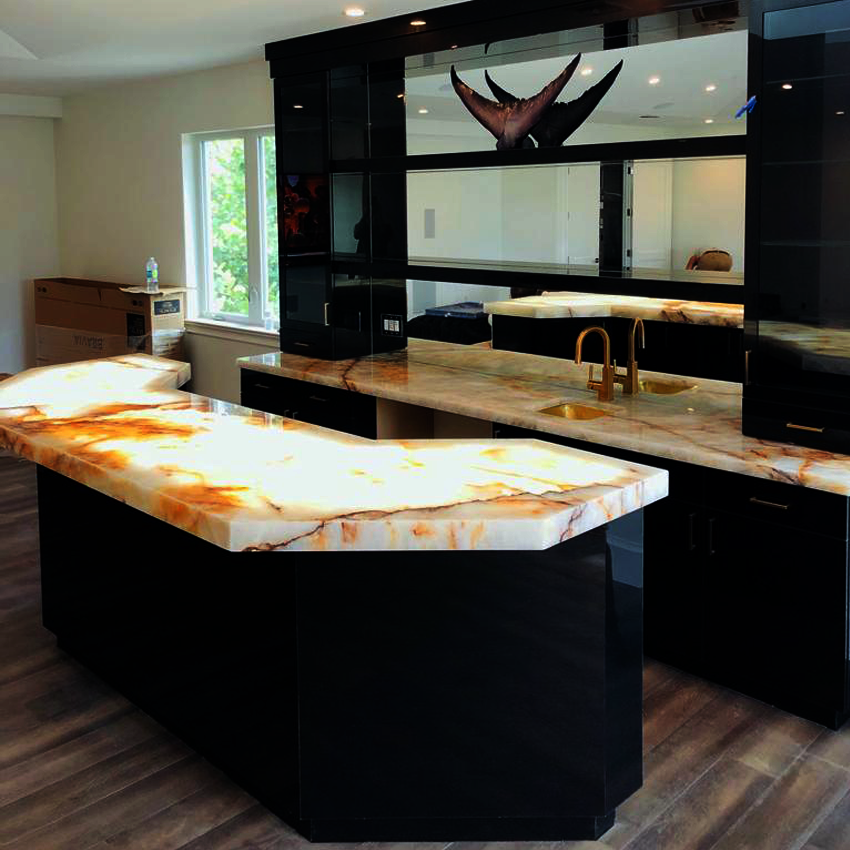

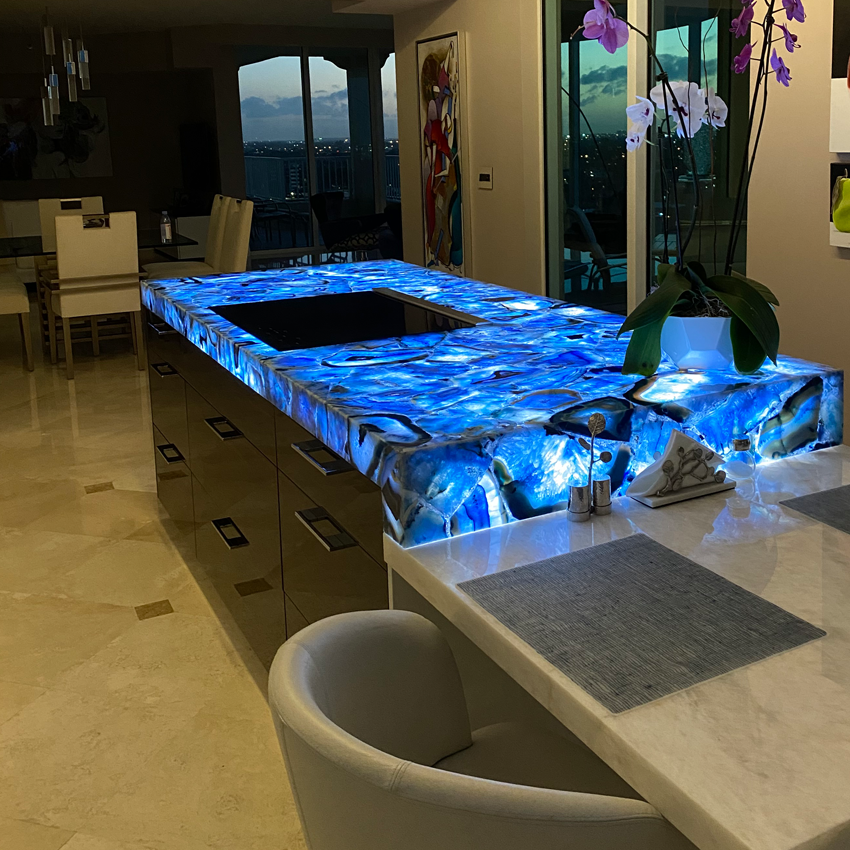

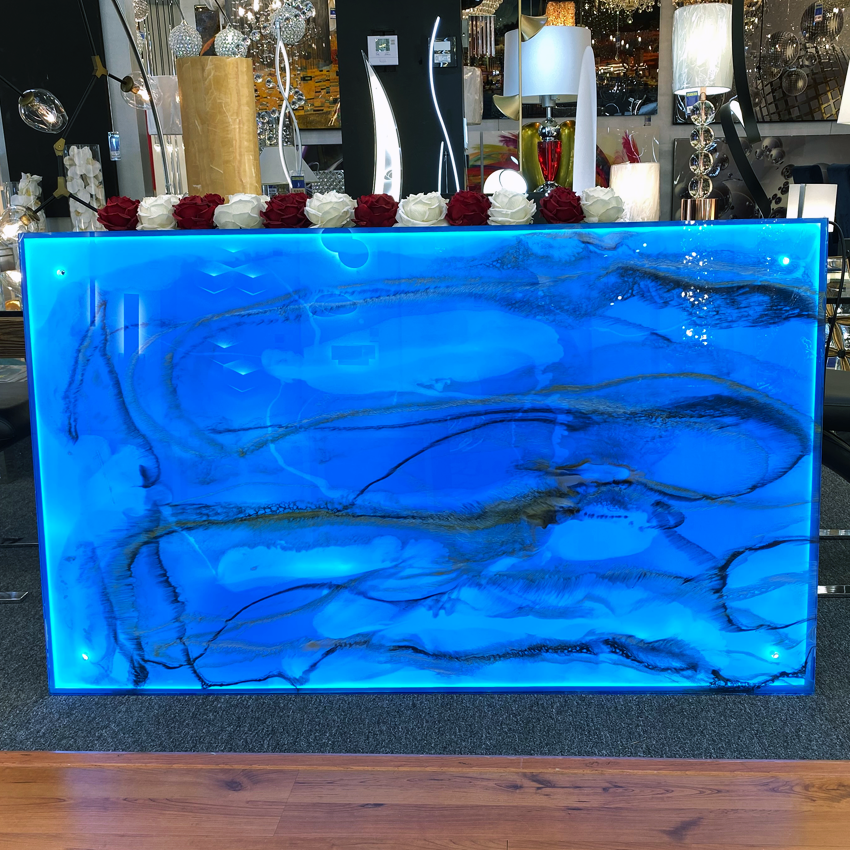

Photo Gallery
LED Light Panel


After

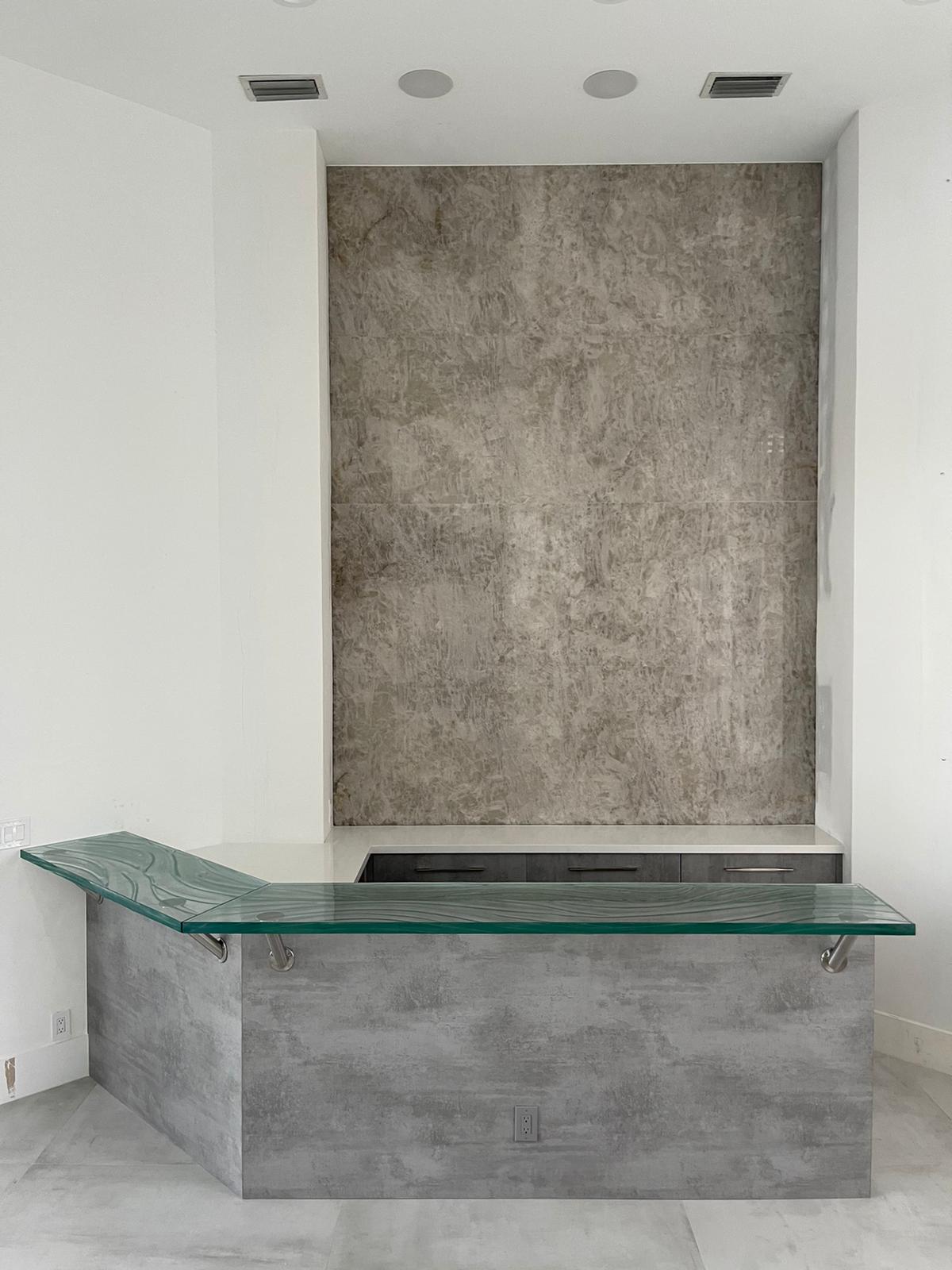

Before
























description
product specs
quote
2d view
colors
pdf

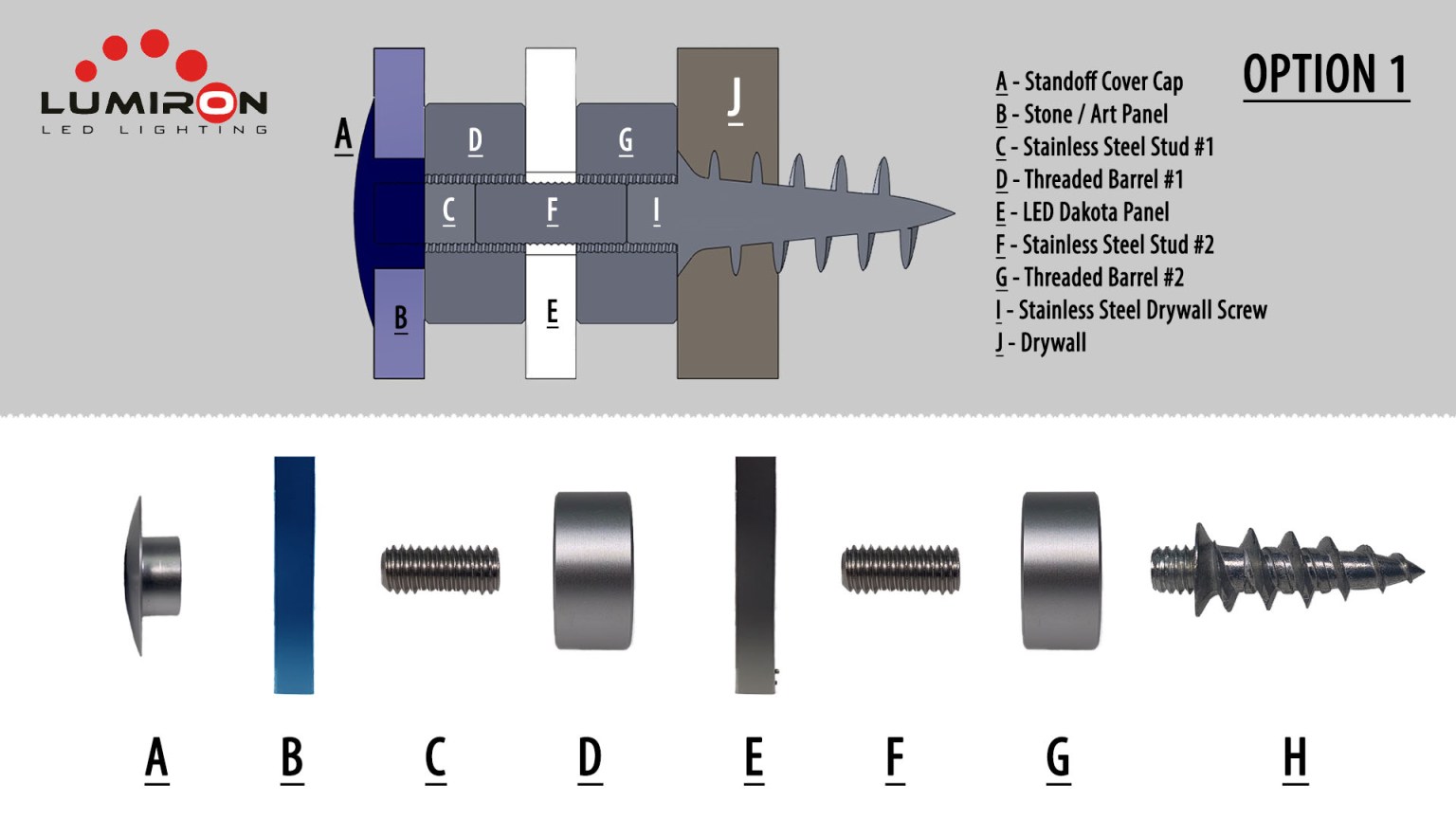

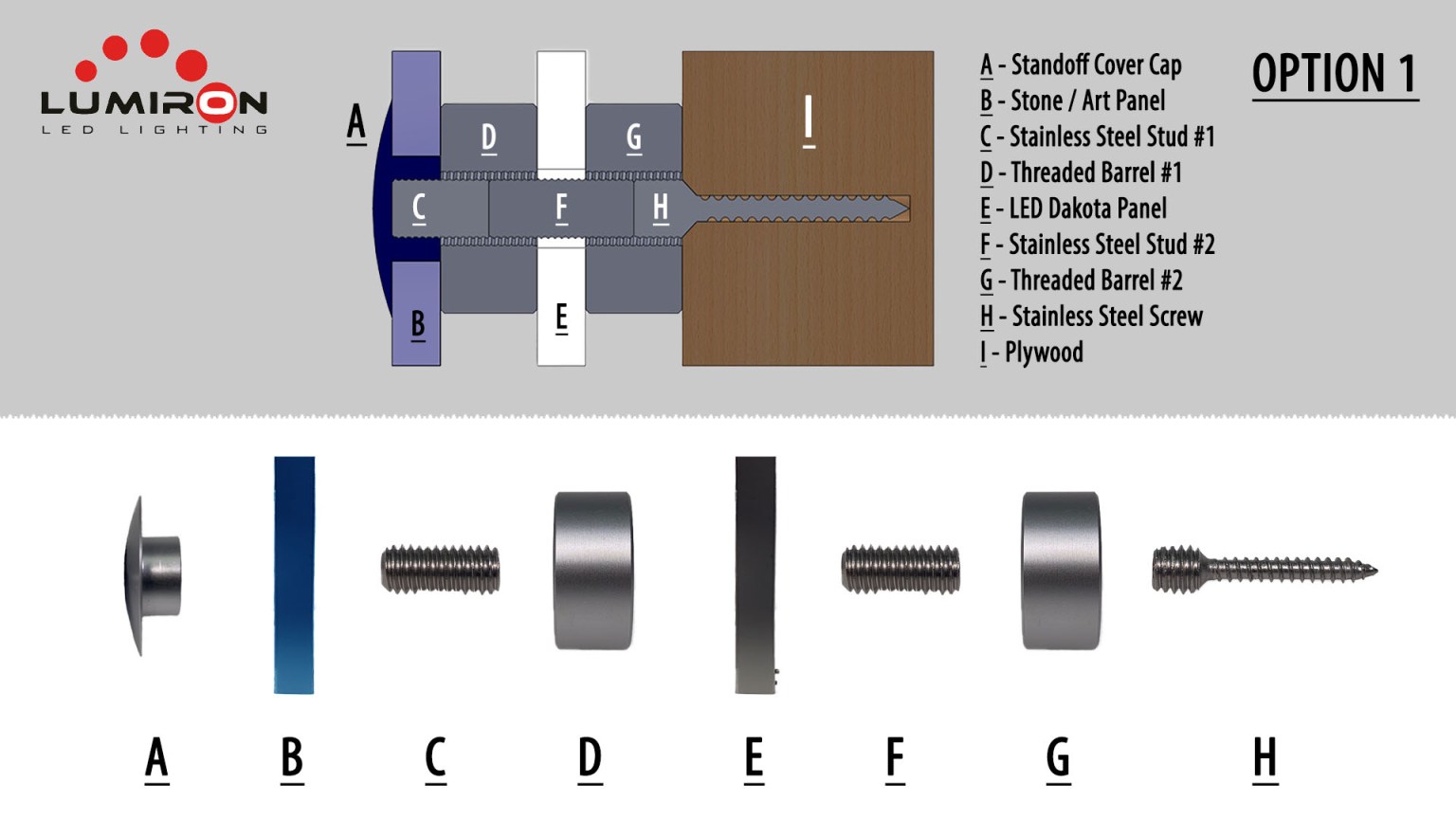

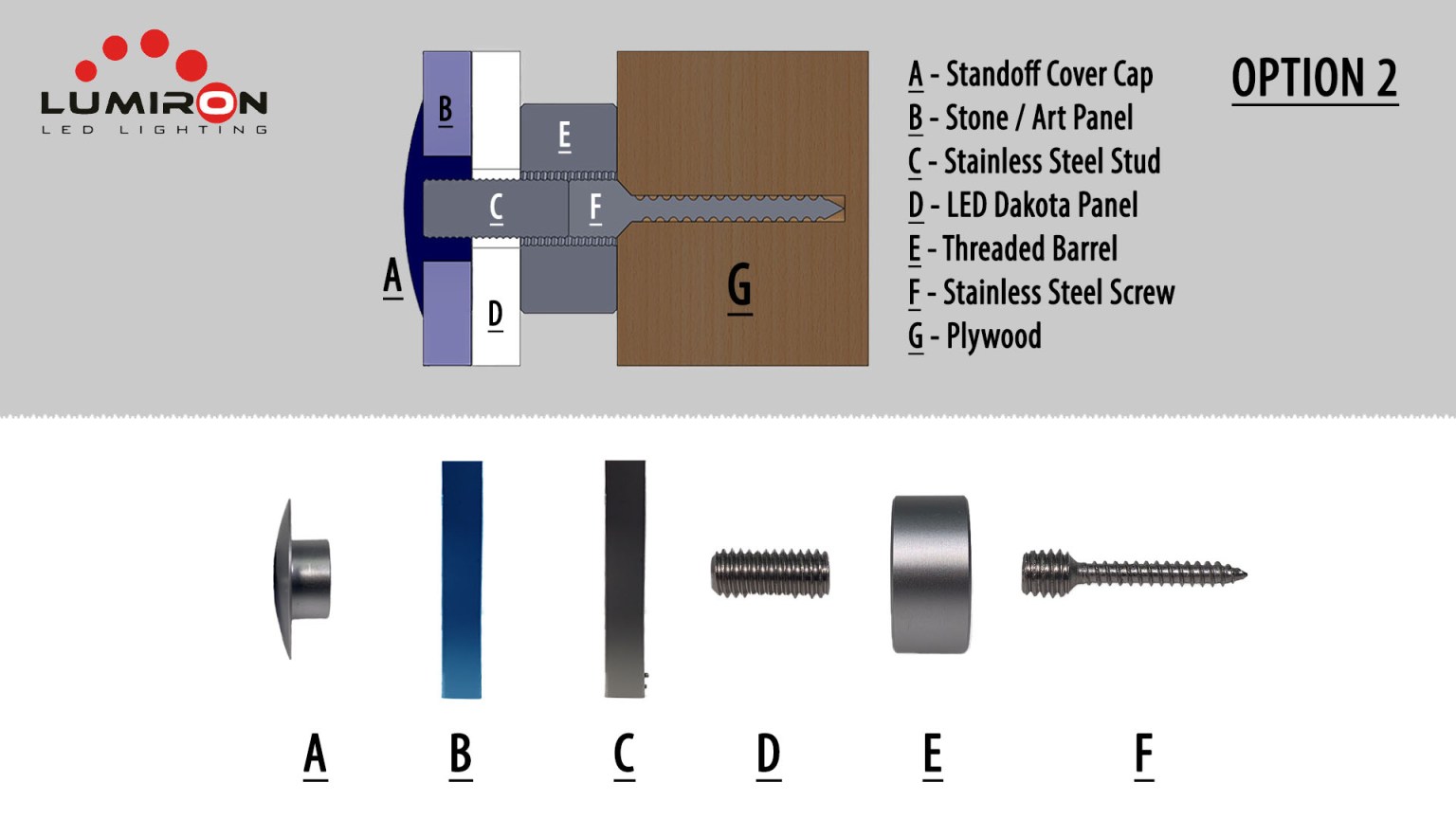

installation
Description
Dakota LED Light Panel

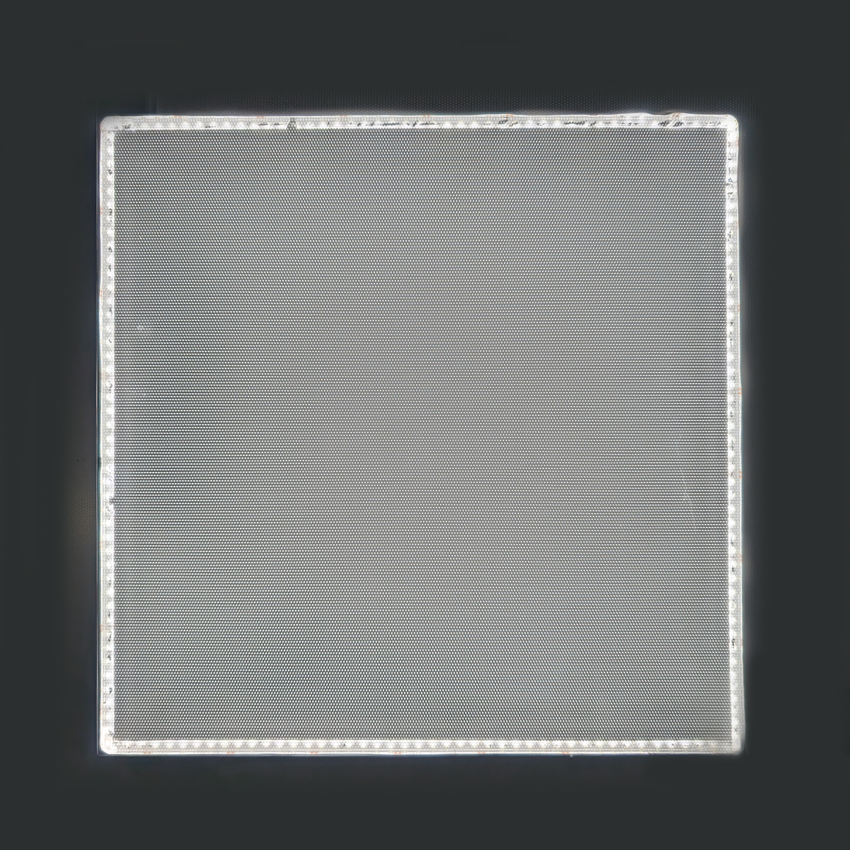

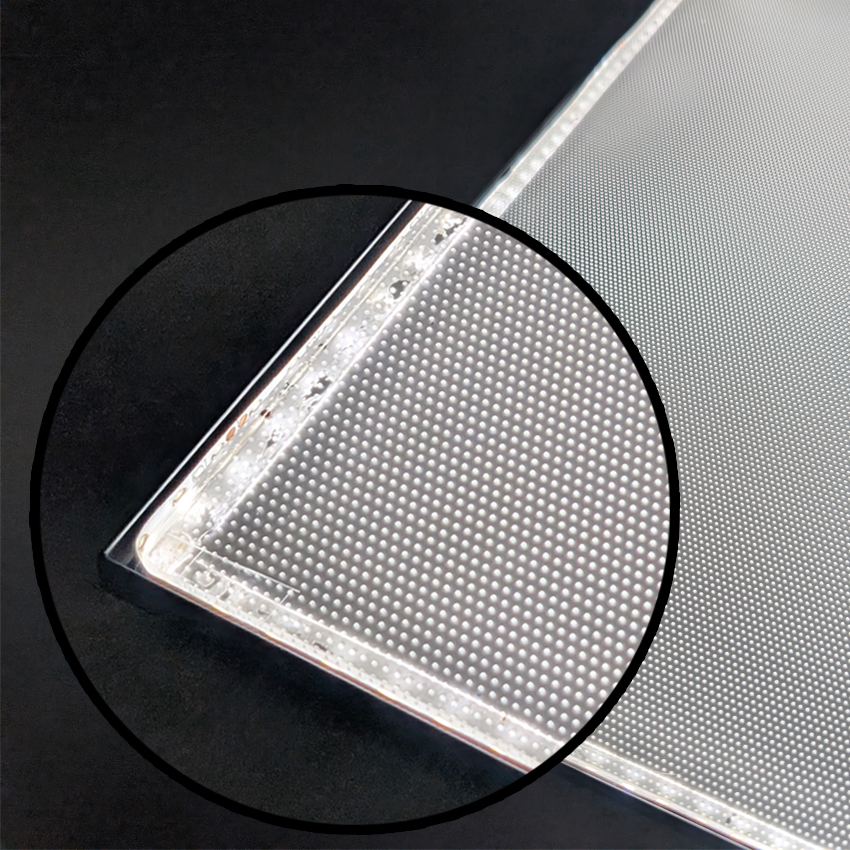

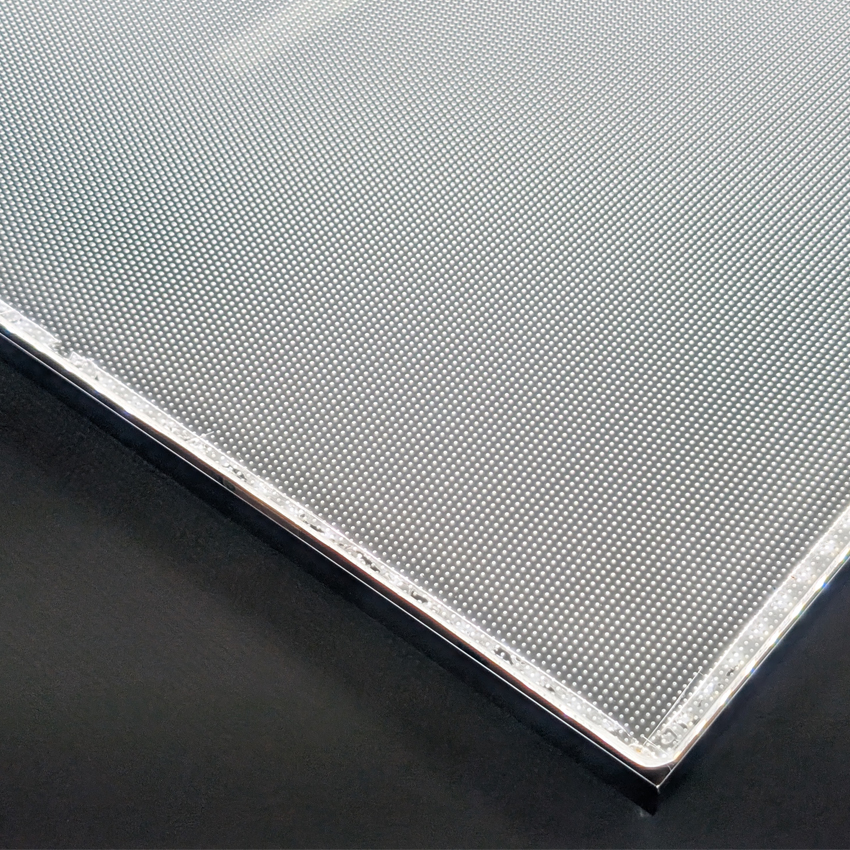

The Custom LED Light Panel is the new innovative light source. In other words, it is designed to be ultimately slim, have even illumination, and be customizable to your design. This new DAKOTA innovative technology and design can be applied in all types of markets to backlit led panels for onyx, quartz, translucent stone. For instance, Architecture & Design, Onyx Translucent Stones, Retail, Signage, and Display & Fixture are some of the main ones.
The LED Light Panel DAKOTA is perfect for stone applications. In addition, their ultra-thin design, from ¼” – ¾” thickness makes them accessible in all areas. Besides, they are available in 24VDC systems with a power supply included. Finally, they also come with DC connectors and adaptors and they are available in a variety of color temperatures: 3000 K, 4500 K, 6500 K, RGB, RGBW, CCT 3000K-6000K and custom colors.
Benefits
- Low Profile Design
- Dimmable
- Low Power Consumption
- Up to 70,000 hours of lifespan.
- 3 Years of Warranty.
- Made in USA.
- Easy Installation and Low Maintenance.
- Custom Lengths and Unique Color Temperatures Available.
Additional information
Dimensions | 6” – 96” (Custom lengths available) |
Colors | Warm White, Neutral White, Cool White, RGB, RGBW |
Wattage / foot | 3 or 4.5 Watts |
Lumens / foot | T2 (259) and T4 (447) |
Input Voltage | 24VDC |
View Angle | 120 degrees |
LED Spacing | 0.5 Inch center to center |
LED Type | T2 (3528), T4 (2835) |
IP Rating | Indoor Standard IP20 – Outdoor IP67 EPX Series |
CRI | 90 |
Lens | Clear acrylic, semi-diffused or diffused lens standard |
Lens Type | Flat |
Housing | Anodized clear aluminum extrusion (Custom colors available (gold, black, …)) |
Mounting | Standard closet rod munting brackets |
Leads | 2 foot 18g 2 cond (custom wire lengths available) |
LED Light Panel Request a Quote
Choose your language [gravityform id=”1″ title=”false”]2D View









Colors











Instalation videos
